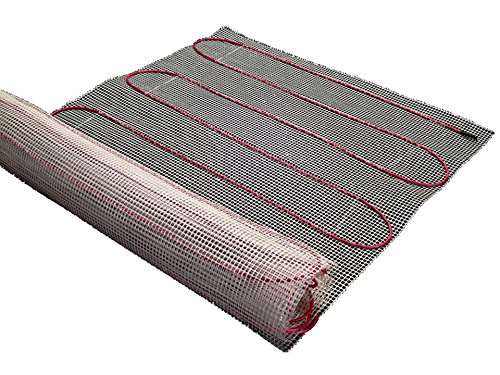

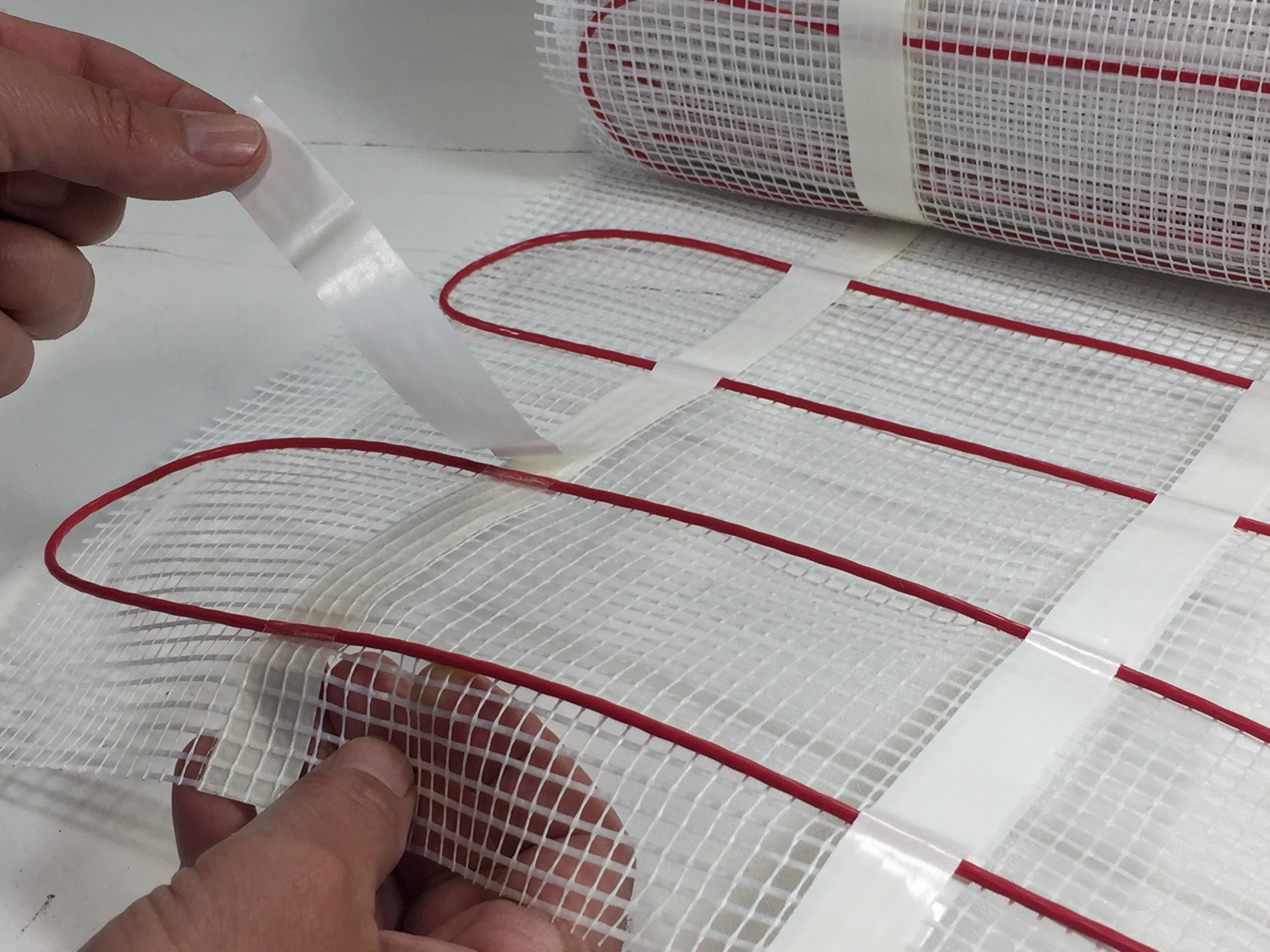

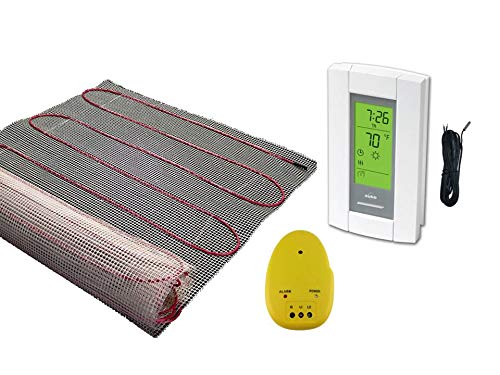

Radiant Floor Heat: Cold floors are a thing of the past when you install an electric floor Warming System. You and your family will love the added warmth and comfort our floor heating system brings to any room it's installed in. Warming System's Electric Floor Radiant Heating System: This Electric Radiant Floor Warming System and thermostat is installed under the flooring in any room in your house and will supply radiant heat, warming the floor and the room’s objects making the entire area comfortably warm. Installation: This product is a “MAT” type of heating system with wire spaced 3” apart and attached to a commercial grade mesh material with adhesive backing. When installed, it is unrolled and laid on the floor across the area to be heated. The mesh material can be cut to make turns and angles to heat just about any shaped area. The red heating element cannot be cut. A more detailed installation process is outlined in the instructions. Carefully calculate the square footage of the area to be heated. Do not include permanent objects or areas that are not walked on. Purchase the corresponding heating system size.Simply unroll the floor heating mat with the cold lead running up the wall to the electrical box. The adhesive tape on either side of the mat allows the mat to stay in place and lay flat. You can manipulate the mat to fit the desired heating area by using the turning techniques shown below. Install the mortar and tile over the top of the heating system.Connect the floor heating thermostat. INCLUDED: Floor Heating Mat The Electric Floor Heating Mat consists of a mat with the cable heating elements pre-spaced 3" within the mat. Simply unroll the floor heating mat with the cold lead running up the wall to the electrical box. These heating systems are ideal for rectangular or square areas with right angles. You can manipulate the mat to fit the desired heating area by using the turning techniques shown below. The white fiberglass mesh may be cut to flip and turn the mat. The RED HEATING ELEMENT CAN NOT BE CUT, so be sure to accurately measure the space you are heating. Programmable GFCI Protected Thermostat with Sensor Thermostat model # TH115-AF-GA The programmable floor sensing thermostat with built in GFCI protection and floor sensor is designed to work with electric floor heating systems. It gives you the ability to accurately control the floor temperature for maximum comfort. The thermostat features high-tech precision with straight forward, user friendly interface and contemporary design with backlit display. This floor sensing thermostat is digital, programmable, and includes the floor sensor. The thermostat is factory pre-programmed with a 7 day schedule that can be adjusted. This thermostat is 120 volts, rated for 16 amps, easily switching between F and C temperature scales. THERMOSTAT FEATURES Built in GFCIAF mode-controls ambient temperature with floor temperature limitationA mode controls the ambient air temperatureF mode controls the floor temperature using an external temperature sensorTwo temperature sensors-one in floor, one in thermostat for accuracy and security Installation Monitor The Installation Monitor can help give you peace of mind while installing the floor warming system. Connect the system leads to the monitor prior to installation. The monitor will "scream" a warning in the event the heating element is cut or damaged allowing you to make any necessary repairs before the heating system is embedded in mortar. If the alarm sounds, stop work and consult the operation manual. We still recommend checking the ohms of the floor heating system with a multimeter before, during, and after installation. Red light and alarm indicates lead wires have come loose from the terminals or damage has occurred to the heating systemA white light indicates the monitor is operatingCan monitor up to 3 systems at one time when they are temporarily connected in series ADHESIVE BACKED MAT This heating mat has double sided tape to offer an adhesive backing that make installation a breeze. Simply fit the mat to your floor, then peal of the tape and adhere to the floor. This greatly reduces the installation time and gets you on your way to enjoying your heated floors. MADE IN USA Warming Systems is proudly Made in the USA. Our manufacturing facility and offices are located in Spring Grove, IL (just outside of Chicago). Our systems are made from the highest quality products and offers the best heating technology on the market. Mat Turns and Fill-in Techniques This table contains some of the common turns and techniques used to layout around corners, angles, and built-ins.Carefully cut the white mesh to make turns. Never cut, nick, or otherwise damage the heating wire. Mat Turns and Fill-in Techniques This table contains some of the common turns and techniques used to layout around corners, angles, and built-ins.Carefully cut the white mesh to make turns. Never cut, nick, or otherwise damage the heating wire. Mat Turns and Fill-in Techniques This table contains some of the common turns and techniques used to layout around corners, angles, and built-ins.Carefully cut the white mesh to make turns. Never cut, nick, or otherwise damage the heating wire. Mat Turns and Fill-in Techniques This table contains some of the common turns and techniques used to layout around corners, angles, and built-ins.Carefully cut the white mesh to make turns. Never cut, nick, or otherwise damage the heating wire. Back-to-Back Turn Flip Turn Roll-over Turn Fill-in Technique
